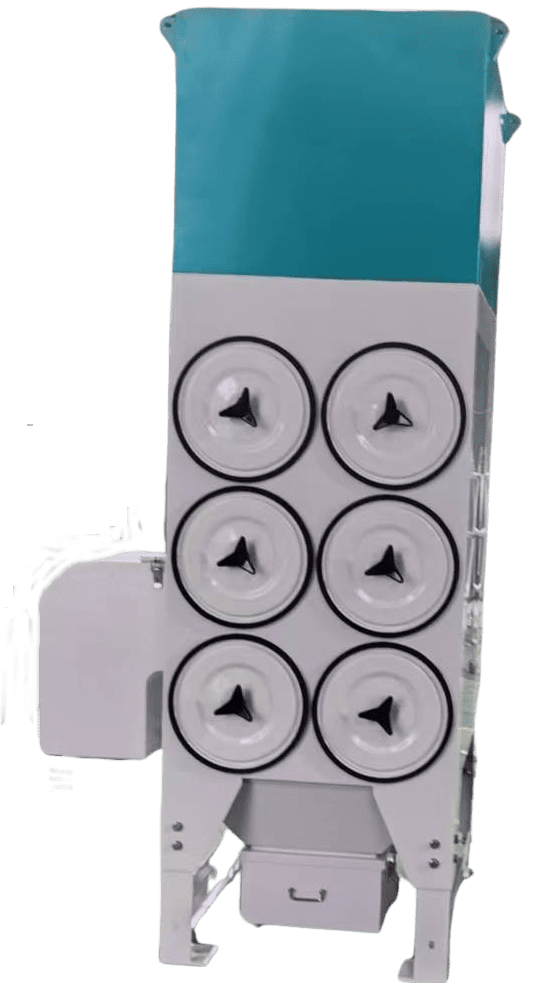

Our FM6000 Metal cutting extractor is designed to effectively filter Fiber Cut Dust and Fumes, including welding fumes. This machine uses 6 x PEFE filters which are pulsed with an air cannon to keep them clean giving a long life up to 3 years. This machine is ideal for Fiber Metal Cutting laser machines up to 2500mm x 1300mm in table size. Spark Arrestor kit is fitted as standard. Explosive Kit available as an option. Super low consumable costs. Finance available.
Our FM6000 Metal laser cutting purifier is designed to effectively filter laser metal cutting, welding dust, fumes & dour. Fitted with first-class advanced motors and our self-braking balance correction technology reduces noise, and the large air volume and high negative pressure ensure better dust absorption.
This machine uses 6 x PEFE filters which are pulsed with an air cannon to keep them clean giving a long life up to 2 years. Our low-cost filters make this the most affordable filtration system on the market to date. Remote start available. Check the prices here (insert link to filter replacement page – opens a new page).
Our built in 5.5Kw motor is used for stable operation, and long-lasting service life. It can work continuously for 24 hours with no down time. You need to supply air to the machine for the pulse cannons. There is an option to upgrade to 7.5Kw.
The sealed high-precision membrane filter PEFE membrane material is used, and the debris filtration accuracy is higher than 0.3um99.9%, and the filtration rate meets zero dust workshop standard. Different filter options are available including washable filters.
This model uses a 5.5Kw high efficiency 415V extraction fan. Motors are wound 415V not 380 for long service life. The new design, the fan can be adjusted in automatic and manual modes for greater control over dust removal.
Metal Cutting Fiber Laser machines up to 2500 mm x 1300 mm. Rust removal bays. Fiber Welding Bays.
| Model Name | FM6000 |
|---|---|
| Size | 920mm x 1050mm x 2130mm |
| Package Size | 1620mm x 1450mm x 2350mm |
| Weight | 580kgs |
| Power | 5.5Kw – optional 7.5Kw |
| Voltage | 415V 3 Phase |
| Volume Processing | 6000m3/h and 7500m3/h |
| Efficiency rated | 99% |
| Inlet Spiggot Diameter options | 150mm, 200mm & 250mm 4.5 Meters of hose included 2 hose clamps included Timber crated packaging and plastic wrapped prepared. |
| Warranty | 2 years Meets Australian Electrical Requirements Purchase - Rent or Rent to buy options available International shipping available Installation set up available at an extra cost |
