Description
Our E1 Ai Intelligent Laser Series Purifier is designed to effectively filter laser engraving & cutting dust, fumes & Odour down to 0.1um which is virus level. This machine utilizes 9 unique – 25 individual filters for maximum efficiency fully digital control system. Full digital touch screen controller as standard. The intelligent control system monitors and alerts you various conditions from the filters being blocked and needing cleaning to any fault conditions present. The filtration systems is suitable for cutting and engraving various non-metal materials such as (acrylic, ABS, plywood, wood, MDF, leather, tumblers, Metal Paste compounds, laser inks, fabric etc.) to name just a few. Our low-cost washable filters make this the most affordable filtration system on the market to date. The unique electrostatic filter simply needs washing when dirty not replacing saving you thousands in consumable costs. We have fitted a 1.1Kw extraction fan to this system and provided dual inlets spigots.
Filters included and available to purchase:
First Layer – 3 x Dust collection Filters – Expected life is 1 year
Second Layer – 2 x Secondary Fine Particle Filter – Expected life is 1 year
Third Layer – Electrostatic Electronic Filter – No need to replace just wash

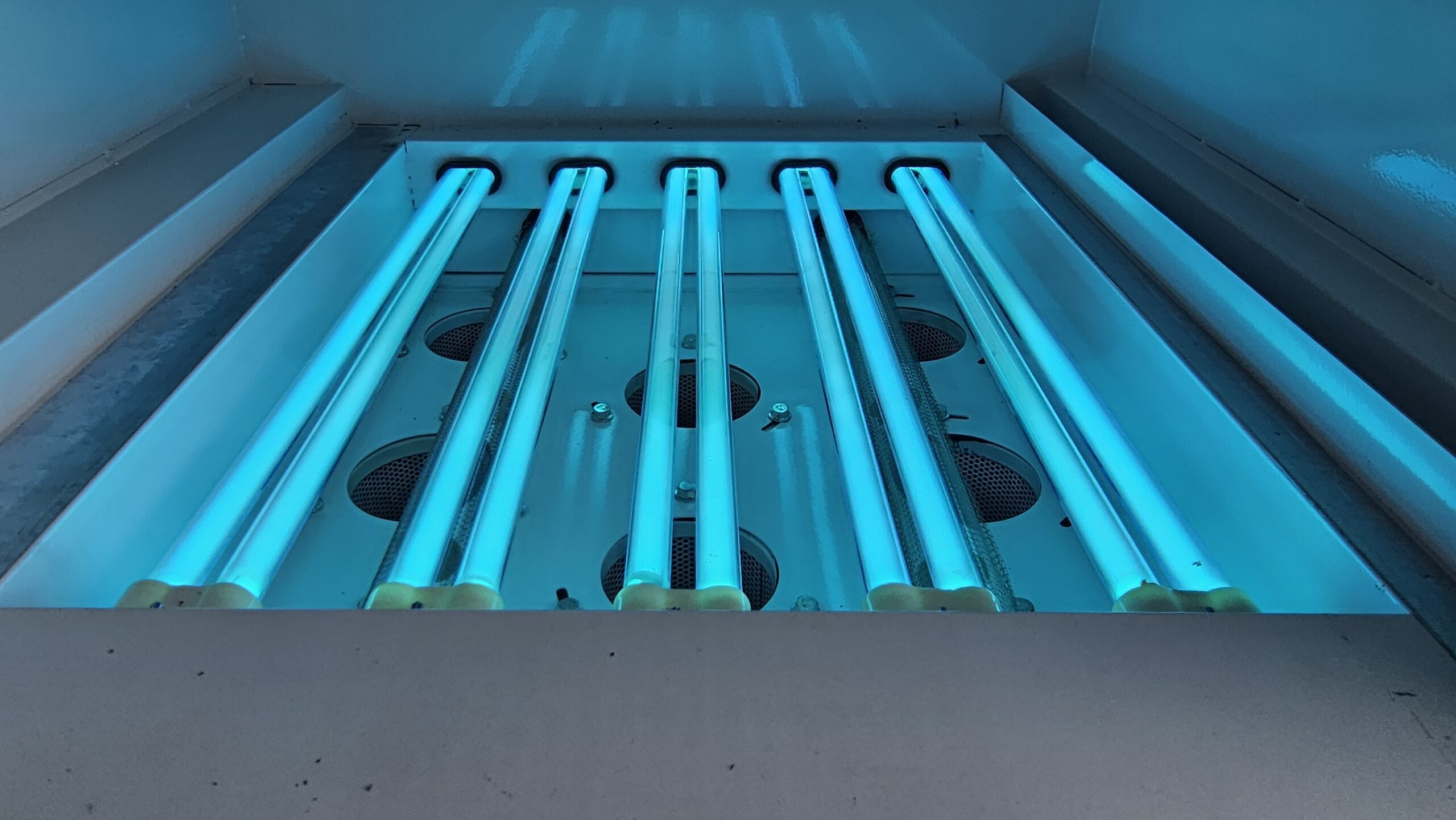

Fourth Layer – 5 x Electronic UV Light Filters – Expected life 3-5 years
Fifth Layer – 2 x Electronic Ion Filters – Expected Life 3-5 year
Sixth Layer – 9 x Active Carbon Filters – Expected Life 1 year
Seventh Layer – 1 x Hepa 13 Filter – Should be replaced every 3-6 months for optimum performance
Eighth Layer – 1 x Active Carbon Honeycomb Filter Draw – Expected Life 1 year
Ninth Layer – 1 x Hepa 13 Filter – Should be replaced every 3-6 months for optimum performance
- How it works:Our Electrostatic precipitation (ESP) systems, used for air purification, and are enhanced by our UV Lamps & Ionization Lamps to combat the potential for ozone formation and other unwanted byproducts.
ESPs work by charging particles in the air stream and then attracting them to oppositely charged plates, effectively removing them from the air and are >99% effective.
- Applications:
ESPs are used in various applications, including laser engraving machines, Direct to Fabric Printers, Powder Shakers, air pollution control and indoor air purification just to name a few.
- Ozone Formation:
High-voltage systems in ESPs can produce ozone, which can be a harmful pollutant. Our 5 UV Lamps deal with that Ozone by decomposing the particle.
- UV’s Role:
UV lamps can be integrated into ESP systems to decompose ozone and inactivate certain types of particles, enhancing overall air quality.
- Benefits:
- Improved air quality: By removing pollutants, UV-enhanced ESPs can improve indoor air quality.
- Inactivation of pathogens: UV can be used to inactivate viral and bacterial particles, further enhancing safety.
- Ozone decomposition: UV can decompose ozone produced during the ESP process, mitigating potential hazards.
- After the organic gas has passed through the filters, the organic (Odor) gas is decomposed and oxidized by high-energy ultraviolet beam and ozone, so that the organic gas material can be degraded into low molecular compounds, water and carbon dioxide, and then discharged outdoor through the extraction outlet.
After a series of chemical reactions, chemicals such as hydrogen sulphide and methyl alcohol, can be oxidized in a short period of time. At the same time, oxygen ions can destroy the living environment of bacteria in the air and reduce the concentration of indoor bacteria. Charged ions can adsorb suspended particles tens of times of their own weight and settle down by their own weight, so as to remove the suspended colloids in the air and purify the air.
- Improved air quality: By removing pollutants, UV-enhanced ESPs can improve indoor air quality.
Annual Filter Replacement Costs
Based on changing the required filters every 12 months the yearly costs of filters will be $533 ex gst
Recommended for:
CO2 laser cutting machines with a bed from 900mm x 600mm up to 2500mm x 1300mm or multiple laser machines. Can be vented back in the room with adequate ventalation.
