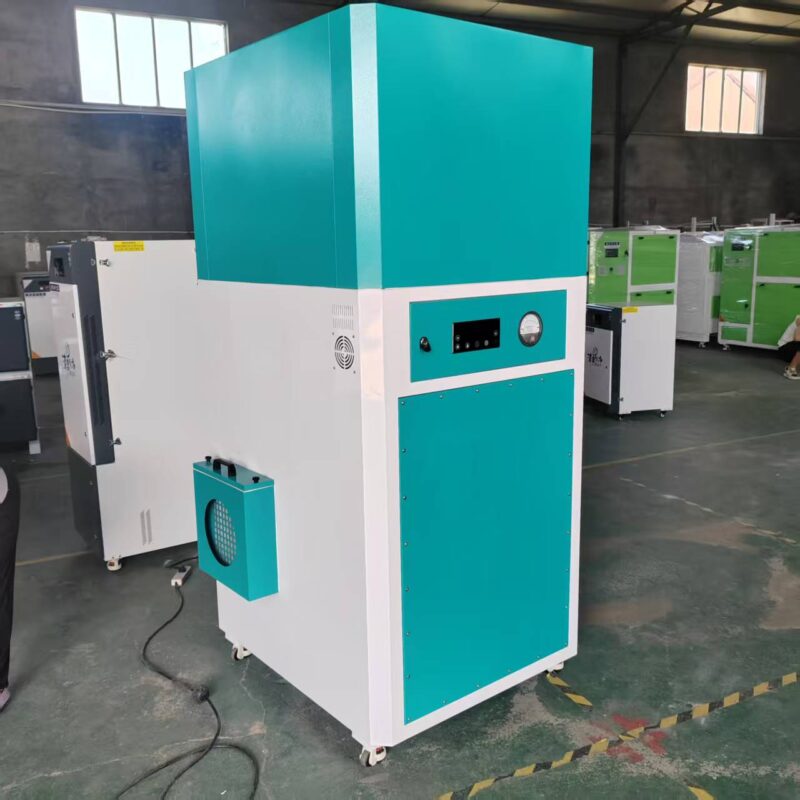

AAFM2000 Metal Cutter Extractor

$6,270.00

AAFM2000 Metal Cutter Extractor Our AAFM2000 Metal cutting extractor is designed to effectively filter Fiber Cut Dust and Fumes, including welding. This machine uses 2 x PEFE filters which are pulsed with an air cannon to keep them clean giving a long life in excess of 1 year. this machine is ideal for Fiber &…

Quantity:

Description

Our AAFM2000 Metal laser cutting purifier is designed to effectively filter laser metal cutting, welding dust, fumes & Odour. Fitted with first-class advanced motors and our self- braking balance correction technology reduces noise, and the large air volume and high negative pressure ensure better dust absorption.

This machine uses 2 x PEFE filters which are pulsed with an air cannon to keep them clean giving a long life in excess of 1 year. Our low-cost filters make this the most affordable filtration system on the market to date. Remote start available. Check the prices here (insert link to filter replacement page – opens a new page).

Filters included and available to purchase:

2 x PEFE filters – Expected life is 1 year or longer.

Pulse Cannon included

How it works:

Our built in 1.1Kw motor is used for stable operation, and long-lasting service life. It can work continuously for 24 hours with no down time.

The sealed high-precision membrane filter PEFE membrane material is used, and the debris filtration accuracy is higher than 0.3um99.9%, and the filtration rate meets zero dust workshop standard.

This model uses a 1.1Kw high efficiency extraction fan. The new design, the fan can be adjusted in automatic and manual modes for greater control over dust removal.

Recommended for:

Metal Cutting Fiber Laser machines up to 1300mm x 900mm.

Rust removal bays.

Fiber Welding Bays.

Model Name: AAFM2000

Size: 920mm x 1050mm x 2130mm

Package Size: 1200mm x 1450mm x 2350mM

Weight: 385kgs

Power: 1.1Kw

Voltage: 240V 50/60hz

Volume Processing: 2000m3/h
Efficiency rated at 99%
Inlet Spiggot Diameter options are 150mm, 200mm & 250mm
4.5 Meters of hose included
2 hose clamps included
Timber crated packaging and plastic wrapped prepared.
Warranty: 2 years
Meets Australian Electrical Requirements
Purchase – Rent or Rent to buy options available
International & Domestic shipping available
Installation & set up available at an extra cost
