Description
Our DTF Ai Series 2 Direct To Fabric Air Filter Purifier is suitable for filtering Oil, High Heat Vapor, Water Vapour, Odor, Steam to name just a few produced by direct to fabric printers. This machine utilizes 3 Metal, washable filtering technologies for maximum efficiency. This is the only machine that works properly.
Equipped with a multi function intelligent touch screen control system, this machine looks after itself. It reports any fault condition so you know when to clean the filters.

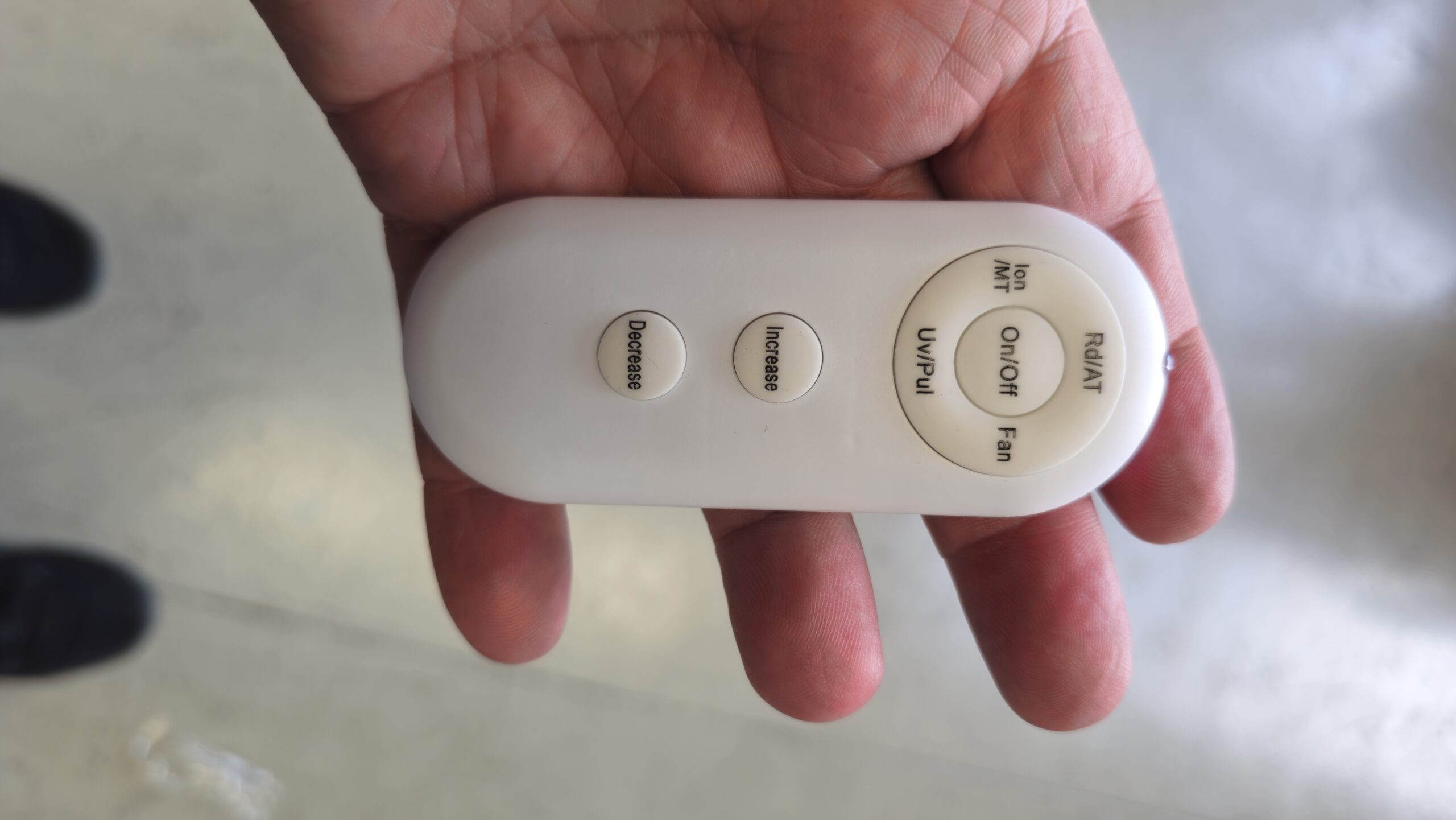

Our no replacement cost filters make this the most affordable filtration system on the market to date. There are no consumables as the filters are all metal. Just wash them and continue working. The unique electrostatic filter simply needs washing when dirty not replacing saving you thousands in consumable costs. Remote start available.
Filters included and available to purchase:

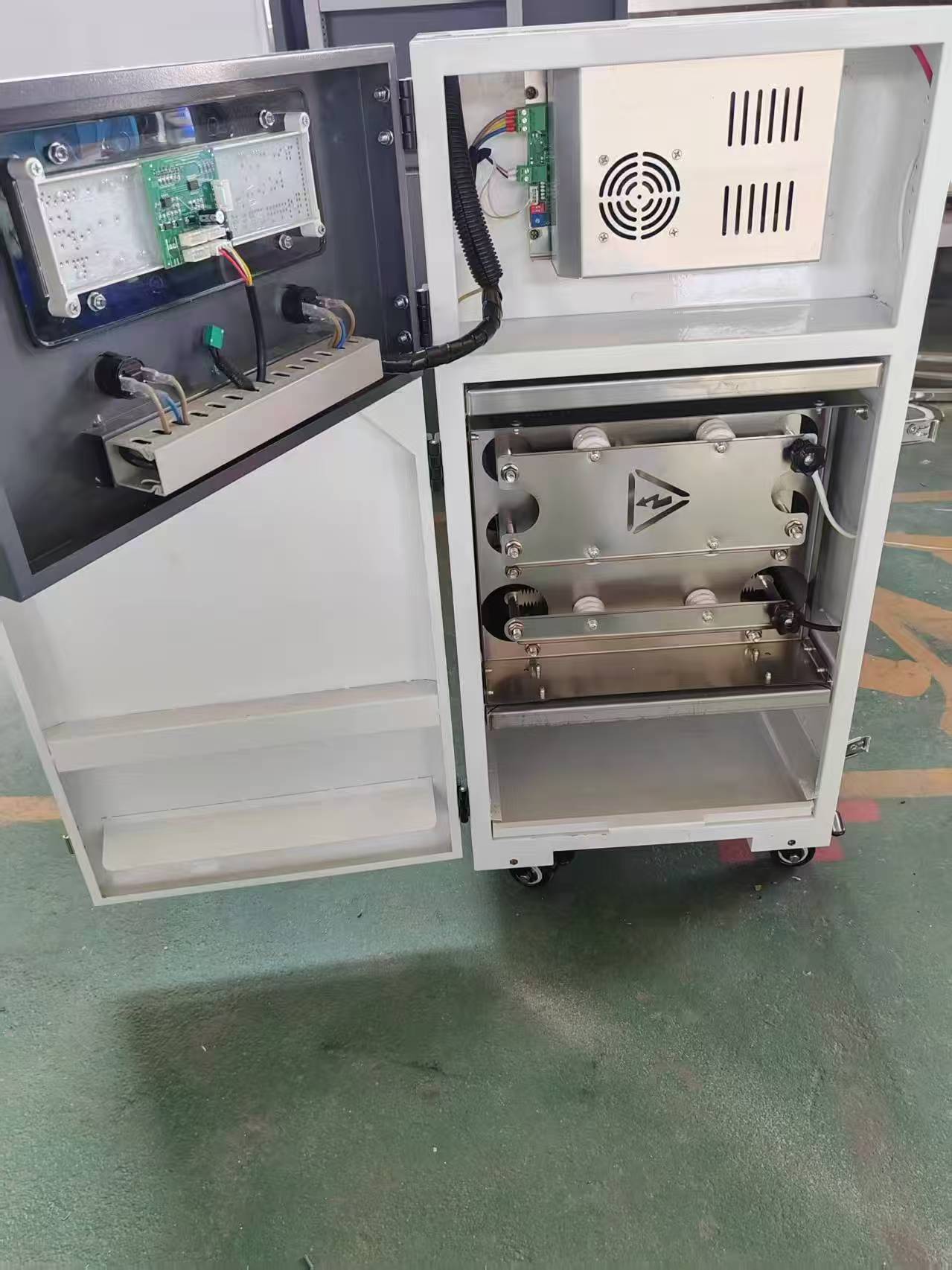

First Layer – Metal washable filter – No need to replace just wash
Second Layer – Electrostatic Electronic Filter – No need to replace just wash
Third Layer – Metal washable filter – No need to replace just wash
How it works:
After the organic gas has passed through the metal filters, the organic (Odor) gas is decomposed so that the organic gas material can be degraded into low molecular compounds, water and carbon dioxide, and then discharged outdoor through the extraction outlet. Oil is dropped into the oil drip tray which needs to be emptied approximately once a month.
Annual Filter Replacement Costs
The filters are metal and do not require changing or replacing. Simply wash, dry and place back in the machine and continue working.
Recommended for:
Direct to Fabric Printing Machines, Powder Shaker machines.

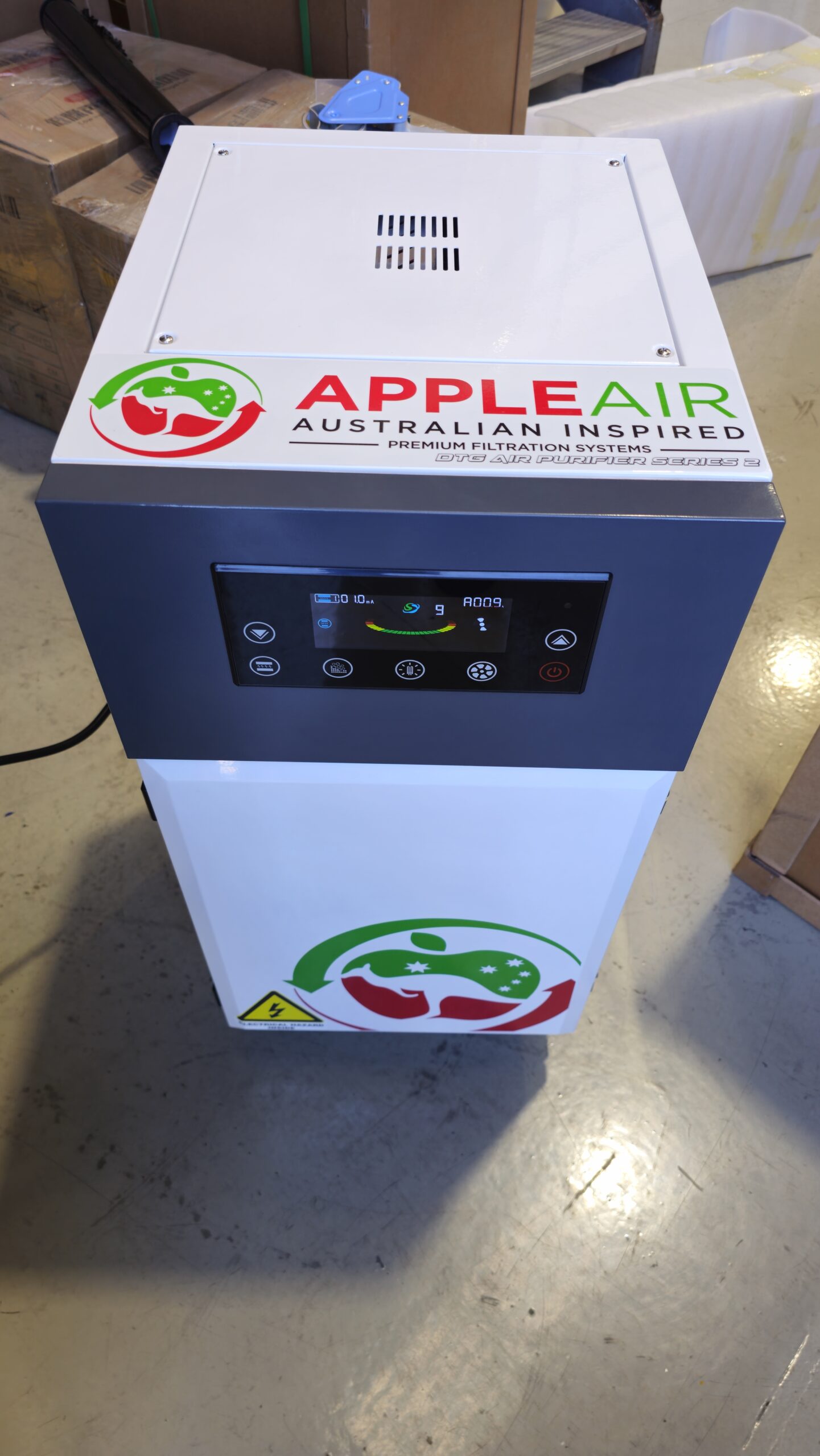

<p><span style="font-weight: 400;"><strong>Model Name</strong>: DTF Ai Series 2 Direct To Fabric Air Filter Purifier</span></p>
<p>IQ: Intelligent touch screen controller with client warning system</p>
<p>Siemens PLC Controller</p>
<p><span style="font-weight: 400;"><strong>Size</strong>: 450mm x 370mm x 760mm</span></p>
<p><span style="font-weight: 400;"><strong>Package Size</strong>: 500mm x 400mm x 850mm</span></p>
<p><span style="font-weight: 400;"><strong>Weight</strong>: 35kgs</span></p>
<p><span style="font-weight: 400;"><strong>Power</strong>: 0.6Kw</span></p>
<p><span style="font-weight: 400;">DC Fan .5Kw Quiet Centrifugal variable speed controlled</span></p>
<p><span style="font-weight: 400;">Voltage: 240V 50/60hz</span></p>
<p><span style="font-weight: 400;"><strong>Volume Processing:</strong> 300m3/h</span></p>
<p><span style="font-weight: 400;">Efficiency rated at 98%</span></p>
<p>No Annual Replacement filter costs – Washable filters</p>
<p><span style="font-weight: 400;">Mobile on castors</span></p>
<p><span style="font-weight: 400;">5 Meters of hose included</span></p>
<p>Inlet 50mm</p>
<p>Outlet 100mm</p>
<p><span style="font-weight: 400;">2 hose clamps included</span></p>
<p><span style="font-weight: 400;">Heavy duty cardboard packaging and plastic wrapped prepared.</span></p>
<p><span style="font-weight: 400;"><strong>Warranty:</strong> 2 years</span></p>
<p><span style="font-weight: 400;">Meets All Australian Electrical Requirements</span></p>
<p><span style="font-weight: 400;">Purchase – Rent or Rent to buy options available</span></p>
<p><span style="font-weight: 400;">International & Domestic shipping available </span></p>
<p><span style="font-weight: 400;">Installation & set up available at an extra cost</span></p>
